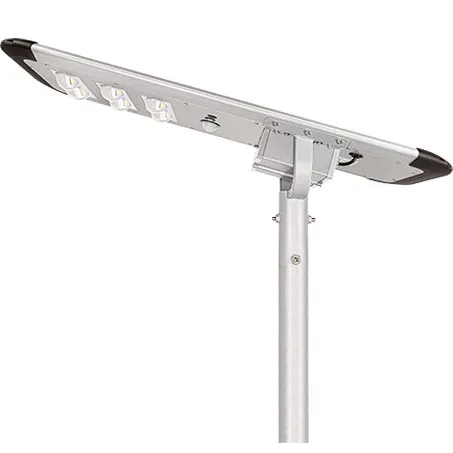

This 80W solar street lights, dusk to dawn street solar lights with PIR motion sensor and light sensor, it can produce over 8000 high lumens of brightness, ideal for illuminating highways, roadways, streets, parking lot and security areas, etc. The main specifications of the 80w solar street lights:
| Model | JXL-ISL01-80W |
| Luminous Flux | >8000LM |
| LED Chip | 96pcs SMD 5050 (High Efficiency) |
| Shingled Solar Panel | 18V/80WP |
| Charge Controller | 12V(MPPT Technology) |
| LiFePO4 Lithium Battery | 12.8V/36,000mAh |
| Battery Life time | 8-10 years(Lifecycle>2,500 times) |
| LED Lifetime | >100,000hours |
| Light Distribution | TYPE II & TYPE III |
| Color Temperature | Ra>70+,6000K(It can be customized) |
| Color Rendering Index | Ra>70 |
| IP Rated | IP 65 |
| PIR Sensor | 360º, sensor distance>14 meters |
| Charging Time | 6-8 Hrs under strong sunshine |
| Cloudy & Rainy days | 3-5 Days |
| Body Materials | Die-Casting Aluminium |
| Product Size | 1130*400*32mm |
| Net Weight | 20Kg |
| Recommended Height | 7-8 meters |
| Pole Diameter | Ø60-70mm |
| Recommended Pole Spacing | 25-30M |
| Discharge Temparature | -25℃ - +65℃ |
| Warranty | 3 years |
| Certificate | ISO,IEC,CE,RoHs,IP65,IES,MSDS |
| Applications | Street lighting, area lighting, security lighting, parking lot areas, off-grid road, etc. |
EASY TO OPERATE & SAVE MONEY
The 80w solar street lamp is easy to install, and it does not require additional hard-wire links, and can be easily mounted on a pole. The diameter of the pole ranges from 60mm to 70mm. And it saving installation costs and maintenance costs, electricity bills as well.

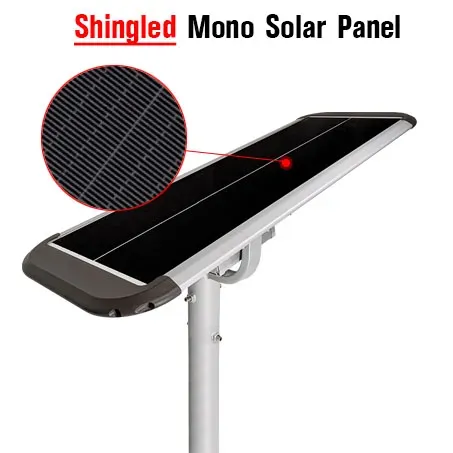

HIGH EFFICIENCY & LONG LIFETIME MONO SOLAR PANELS
Outdoor solar street light use shingled monocrystalline silicon photovoltaic panels with the high photoelectric conversion efficiency up to 30%. Thw 60w solar light outdoor built-in 36000mAh large capacity lithium battery, to be fully charged in only 6-8 hours, providing a long working time about 6-7 rainy days.
BUILT-IN MOTION SENSOR AND LIGHT SENSOR
Solar street lights come on at dusk, automatically turn off and charge at dawn. Solar motion sensor light turn 100% brightness mode in 2 seconds when motion is detected. It reverts back to 30% energy saving mode again if people out of the detected area.
IP65 WATERPROOF
Solar street lights IP65 waterproof grade, rainproof, lightning protection and dustproof, ABS plastic lamp body and new inner design housing with individual sealed boxes for batteries, controller and outer sealed rubber ring protect from water leaking.
Three years Warranty
Solar street lamp efficiently with a lifespan of 50,000+ hours eliminates the need to frequently replace your fixture. We offer a 3-year warranty to all customers. If there are quality problems with solar lights motion outdoor, please contact us.
