Price：$35 / Piece, MOQ:5PCS
20 watt solar street light, a private mould unique design dusk to dawn led solar street light, uses SMD 2835 super bright Led lights provides 2000 lumens output, outdoor IP65 waterproof solar garden light with PIR motion sensor, ideal for courtyard, wall, road, garden, park, plaza, pathway. The main specifications of 20w solar street lights are as follows:
| Model | JXL-ISL01-20W |
| Lamp Power | 20W |
| Luminous Flux | 2000LM |
| LED QTY | 68pcs |
| LED Type | SMD2835 |
| Color Temperature | 6000K |
| Color Rendering Index | Ra>70 |
| Beam Angle | >120 degree |
| LED Lifespan | 50,000 hours |
| Solar Panel Type | Shingled monocrystalline solar panel |
| Solar Panel Power | 6V/10WP |
| Solar Panel Lifespan | 25 years |
| LiFePO4 Lithium Battery | 3.2V/11Ah, 2500 cycles |
| Charge Time | 6-8 hours under strong sunshine |
| Working Time | 2-3 rainy days backup |
| Light Modes | M1,M2,M3,EU or customized |
| Body Materials | Q235 steel + PC |
| IP Rated | IP 65 |
| Sensor Distrance | <12m |
| Recommended Height | 3-5m |
| Recommended Pole Spacing | 9-12m |
| Operating Temperature | -10 degree to +60 degree |
| Storage Temperature | 0 degree to +45 degree |
| Warranty | 3 years |
| Certificates | CE, RoHs, FCC, IP65 |
| Applications | Courtyard, Wall, Road, Garden, Park, Plaza, Pathway, etc. |

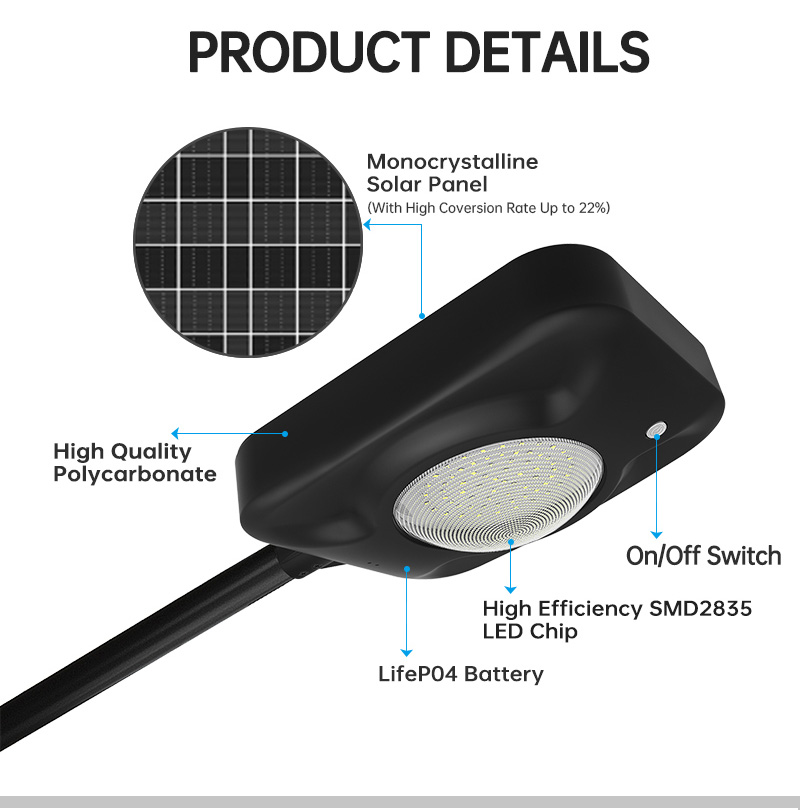

Description
Shingled Monocrystalline Solar Panel
The solar panel is a premium 9V and 10 watt shingled mono solar panel, with the highest conversion efficiency in the industry, ensuring a full charge within 4-6 hours, providing 6-7 rainy days working time. Its lifespan is more than 25 years.
Long Lifespan LifePO4 Battery
This 20W solar yard light built-in 6AH high capacity 6.4V lithium iron phosphate battery which enhanced safety, strong thermal stability, tolerance to abuse, green, non-toxic, non-polluting, high current rating and 2000 cycle life.
MCU Intelligent Control Unit
Provide real-time monitoring of lithium-ion battery capacity with automatic detection, then automatically control the drive power and adjust light brightness by its pulse width modulation (PWM).
EASY TO OPERATE & SAVE MONEY
The 20w solar street lamp is easy to install, and it does not require additional hard-wire links, and can be easily mounted on a pole or wall. The diameter of the pole ranges from 60mm to 70mm. And it saving installation costs and maintenance costs, electricity bills as well.
Three years Warranty
Solar street lamp efficiently with a lifespan of 50,000+ hours eliminates the need to frequently replace your fixture. We offer a 3-year warranty to all customers. If there are quality problems with solar lights motion outdoor, please contact us.
