100W/120W Solar Powered Street Lights, 11000LM High Brightness Solar Powered Street Lights With Shingled Solar Panel

  • Solar Powerd Street Lights 100w Solar Road Light

Solar Powerd Street Lights 100w Solar Road Light

100w/120w solar street lights, 10500 - 11000 lumens super bright shingled solar panel street light with PIR motion sensor and remote control, ideal for illuminating highways, roadways, streets, parking lot and security areas, etc. The main specifications of these solar powered street lights:

We're Here To Help You
Use this form to tell us your questions about products, online orders, after sale service and more.

Product Specification
Model JXL-ISL01-120
Luminous Flux 10500 - 11000LM
LED Chip SMD 5050 (Super Bright)
Shingled Solar Panel 23V/108WP
LiFePO4 Lithium Battery 12.8V/54,000mAh
Color Temperature 3000K,4000K,5000K,6000K Customised
Color Rendering Index Ra>70
IP Rated IP 65
Sensor Distrance <12M
Charging Time 6-8Hrs
Working Time 6 - 7 rainy days
Body Materials Aluminium
Product Size 1600*400*32mm
Net Weight 20Kg
Recommended Height 8-12M
Pole Diameter Ø60-70mm
Recommended Pole Spacing 25-35M
Operating Temperature 0℃ - +60℃
Discharge Temparature -20℃ - +60℃
Warranty 3 years
Certificate CE,RoHs,IP65
Applications Street lighting, area lighting, security lighting, parking lot areas, off-grid road, etc.
Product Details

100W 120W Solar Street Lights With Shingled Solar Panel

High Capacity Lithium Battery and High Conversion Rate Mono Solar Panel
The solar powered street light built-in 54Ah high capacity 12.8V lithium iron phosphate battery which enhanced safety, strong thermal stability, tolerance to abuse, green, non-toxic, non-polluting, high current rating and 2000 cycle life. The solar panel is a premium 23V/108WP shingled monocrystalline panel, ensuring a full charge within 6-8 hours, providing more than 7 night lighting time.

Light Sensor (Dusk To Dawn), PIR Motion Sensor
Built-in light sensor and sensitive motion sensor. Solar street lights come on at dusk, automatically turn off and charge at dawn. When motion is detected, the solar motion sensor light would be brighter, and then becomes dim again if people or car out of the detected area。

Super Bright Solar Street Lights
Use SMD 5050 superior quality LED light for bright illumination, the brightness is several times higher than traditional light bulbs, and you can save up to 80% electricity(0 electricity fee).

Easy Installation, No Wiring needed
Our solar powered street lamp can be mounted on pole that in direct sunlight for charging. No wiring needed. Recommended pole diameter is 1.67-2.36 inch, and the installation height is recommended to be 8-12m.

Three years Warranty
Solar street lamp efficiently with a lifespan of 50,000+ hours eliminates the need to frequently replace your fixture. We offer a 3-year warranty to all customers. If there are quality problems with solar lights motion outdoor, please contact us.

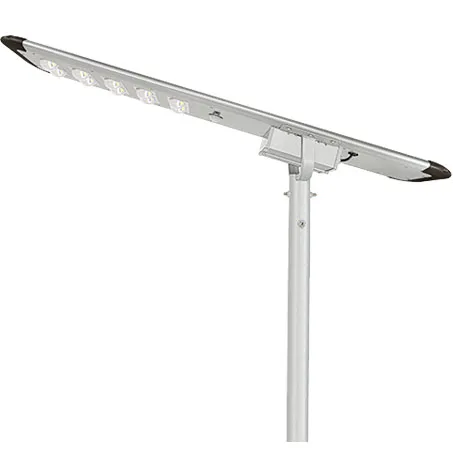

100w solar street light with Shingled Solar Panel

100w solar street light product detail

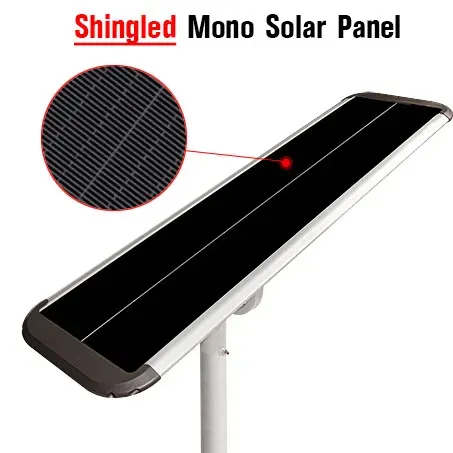

Built-in high conversion rate shingled mono solar panel

Comparison Between Conventional Solar Panel and  Shingle Solar Panel

Built-in brand new replaceable lifepo4 battery

Successful projects all over the world

Automatic turn on at night and turn off at daytime

Features ip65 waterproof, high and low temperature resistance

Remote control lamp brightness with 4 lighting modes for choice

mcu4.0 technology


solar street lighting production
